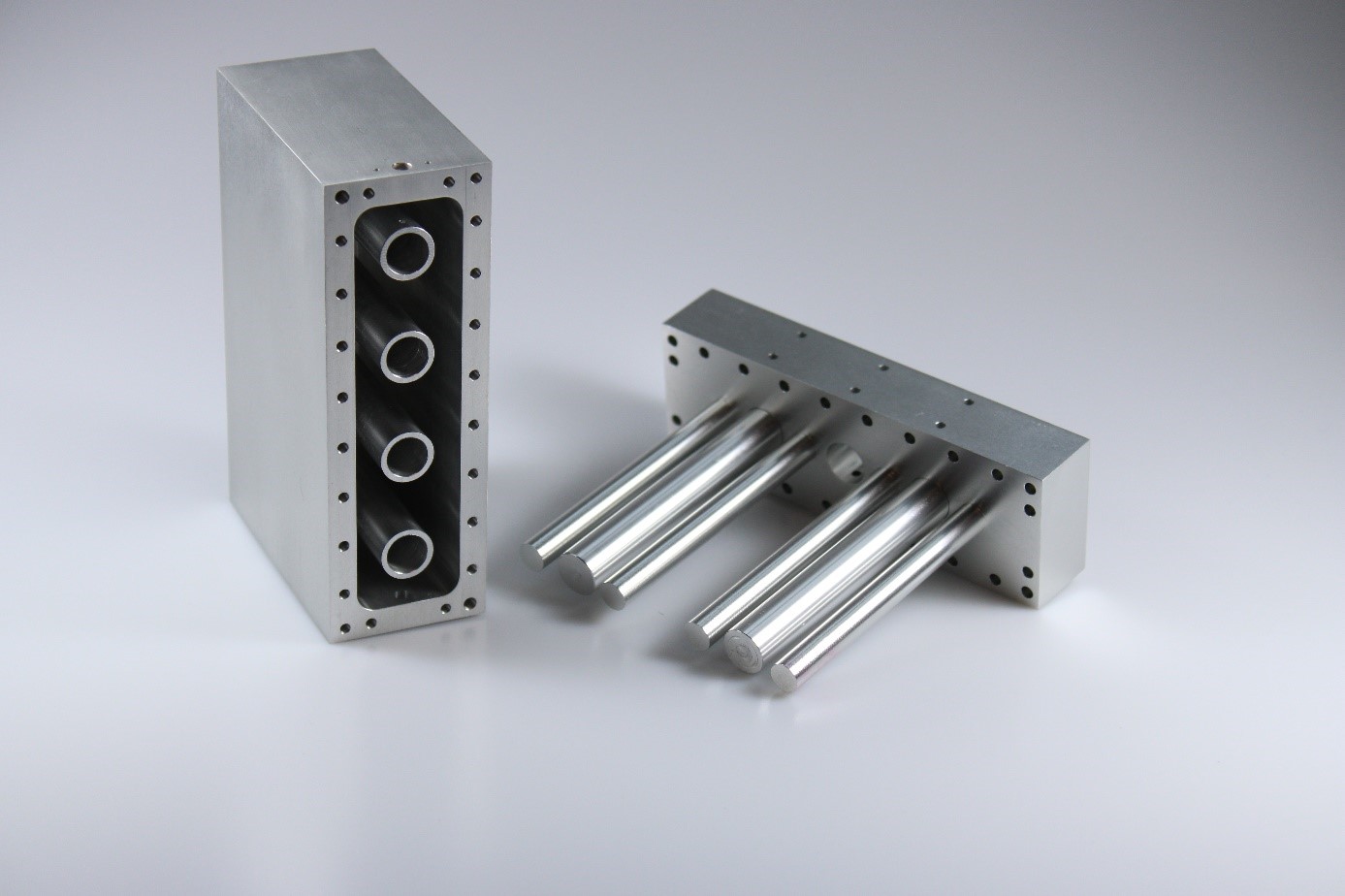

The ELL-FU-BP-0028-0033-01 band pass filter is made in machining technology. It operates in the 0.28 – 0.33 GHz band.
- Description
- Additional information
Description
The ELL-FU-BP-0028-0033-01 band pass filter is made in machining technology. It operates in the 0.28 – 0.33 GHz band. It has an insertion loss level of around 0.66 dB for a size of 120 x 40 x 150 mm3. It offers strong rejection on both sides of the bandwidth greater than 40 dB.
Additional information
| Ref | |
|---|---|
| Frequency (f0) | 0.305 |
| Rejected high band (dB) | >40 (0.46 – 1 GHz) |
| Rejected low band (dB) | >40 (DC – 0.21 GHz) |
| Bandwidth (GHz) | 0.28-0.33 |
| Insertion Loss (dB) | 0.66 |
| Bulk size W x L x H mm3 | 120 x 150 x 40 |
| Technology | Machining |
